Repair Procedures: Removal: [Outside]

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

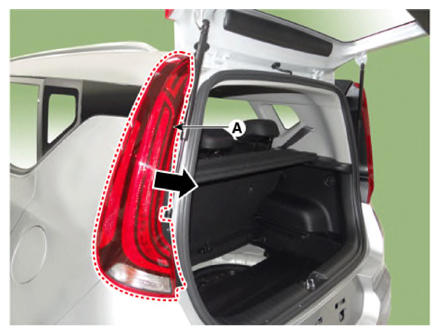

  2. Remove the rear combination lamp (A) by pulling it as direction of arrow after loosening the screws.
    G13282641Courtesy of KIA MOTORS AMERICA, INC.
    G13282642Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the rear combination lamp connector (A).
    G13282643Courtesy of KIA MOTORS AMERICA, INC.
