[Rear door side weatherstrip]
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

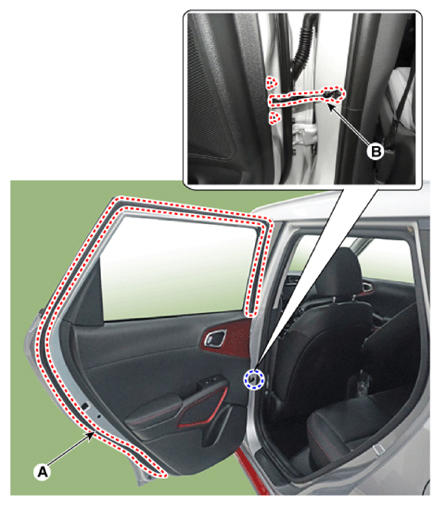

- Loosen the rear door checker (B) mounting bolt.
Tightening torque:
21.6 - 26.5 N.m (1.7 - 2.2 Kgf.m, 12.3 - 15.9 lb.ft)
- Detach the clips, remove the rear door side weatherstrip (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- To install, reverse removal procedure.
Information
Replace any damaged clips.
