Circuit Inspection
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

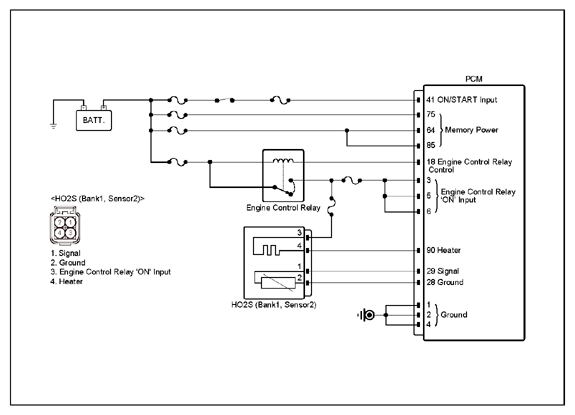

HO2S (Bank 1, Sensor 2) connector | 3 (power) | Chassis ground | - | Approx. 12V |
| HO2S (Bank 1, Sensor 2) connector | 4 (heater) | Chassis ground | - | Approx. 2.5V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
