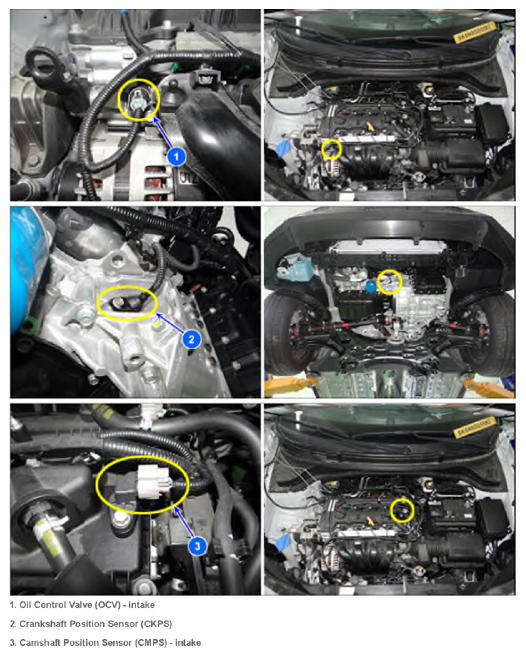

Component Location

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
G15728607Courtesy of KIA MOTORS AMERICA, INC.
