Circuit Inspection
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

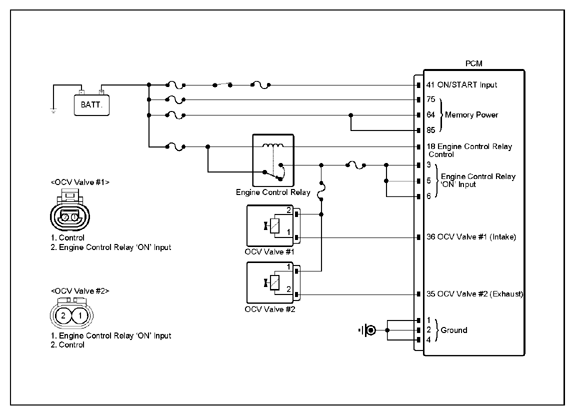

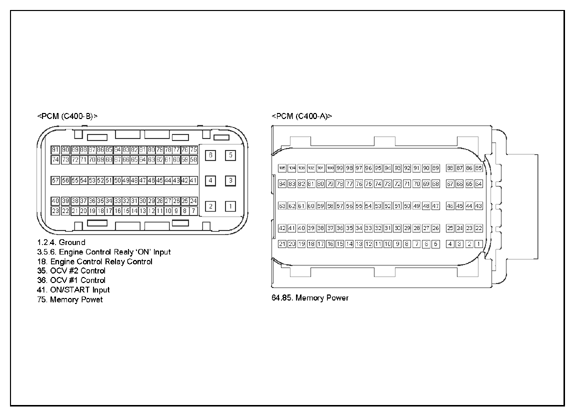

OCV valve #2 connector | 2 (control) | PCM connector | 35 (control) | Approx. below 1Ω |
| OCV valve #2 connector | 1 (power) | Chassis ground | - | ∞ (infinity) Ω | |
| OCV valve #2 connector | 2 (control) | Chassis ground | - | ∞ (infinity) Ω | |
|
OCV valve #2 connector | 1 (power) | Chassis ground | - | B+ |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then Go to "Verification Of Repair " procedure.
