Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
G13291304Courtesy of KIA MOTORS AMERICA, INC.

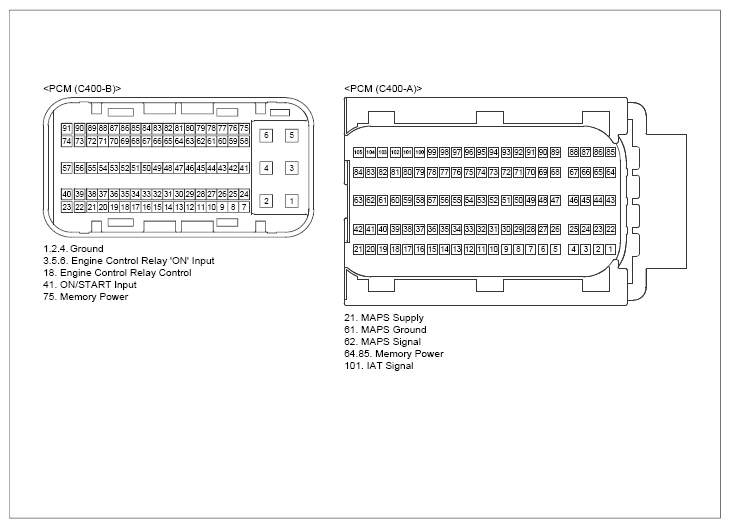

G13291305Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect MAPS connector.
  3. Ignition "ON".
 MAPS connector 2 (power) Chassis ground - Approx. 5V
MAPS connector 1 (signal) Chassis ground - 0V
  1. Ignition "OFF".
  2. Disconnect MAPS connector and PCM connector.
 MAPS connector 1 (signal) PCM connector 62 (signal) Approx. below 1Ω

Good

  1. Go to "Verification of Repair " procedure.

No Good

  1. Carefully re-do this troubleshooting guide steps.
  2. If no problems were found with the circuits or connectors, replace the MAPS and go to "Verification of Repair " procedure.
