Monitor KDS Data
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|
Fig.1 |
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| connector | Terminal | connector | Terminal | ||
|

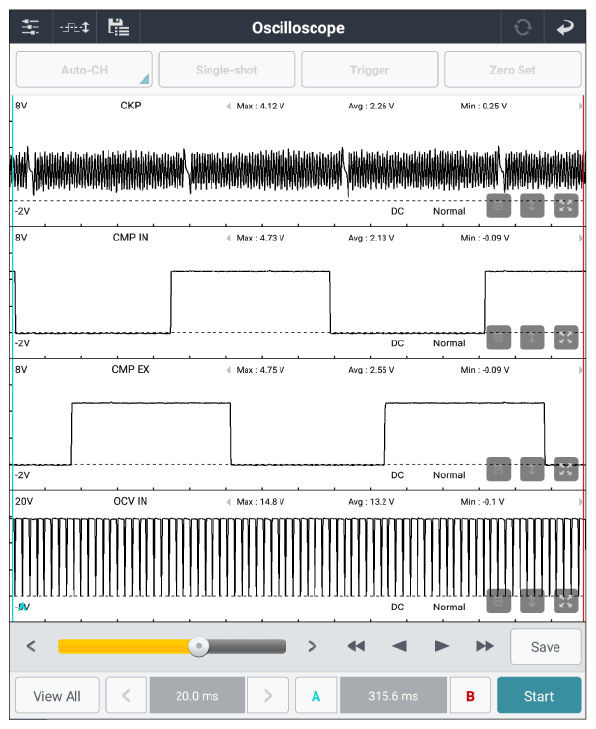

CKPS connector | 2 (signal) | CMPS - In connector | 2 (signal) | Fig.2 |
| CMPS - Ex connector | 2 (signal) | OCV - In connector | 1 (control) | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.
No Good
- Go to "Wiring Inspection " procedure.
