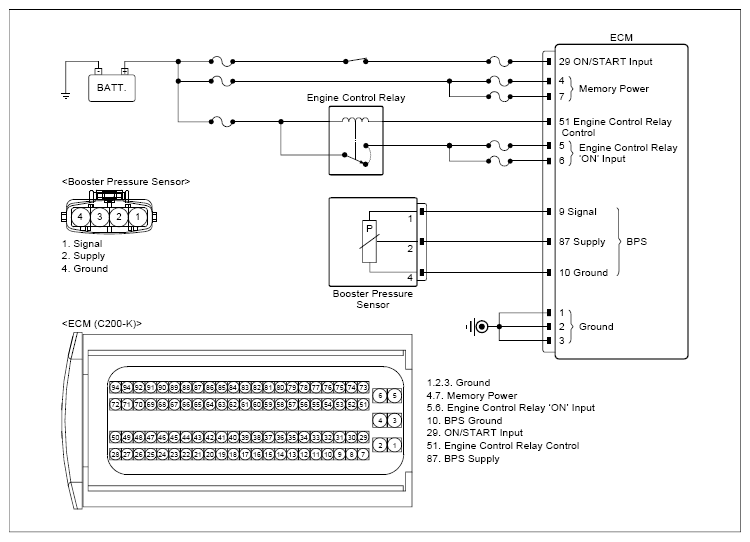

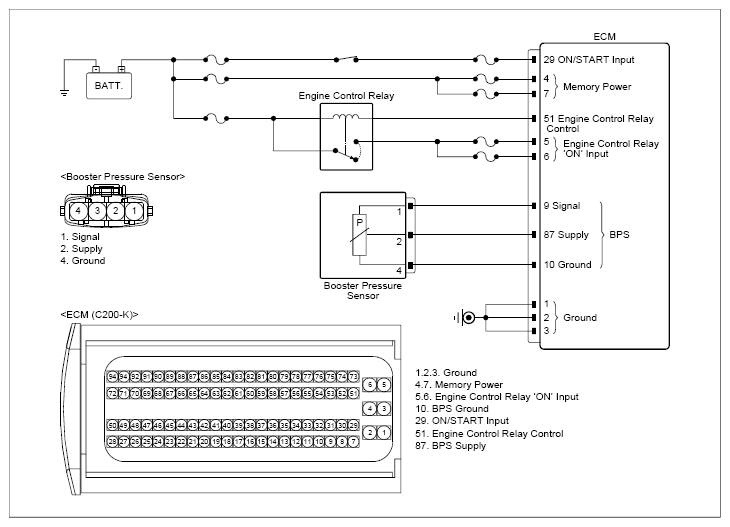

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| connector | Terminal | connector | Terminal | ||
|
BPS connector | 2 (power) | Chassis ground | - | Approx. 4.9V |
| BPS connector | 1 (signal) | Chassis ground | - | Approx. 0V | |
|
BPS connector | 1 (signal) | Chassis ground | - | ∞ (infinity)Ω |
| BPS connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the BPS and go to "Verification of Repair " procedure.
No Good
- Repair or replace as necessary and then, go to "Verification of Repair " procedure.
