Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

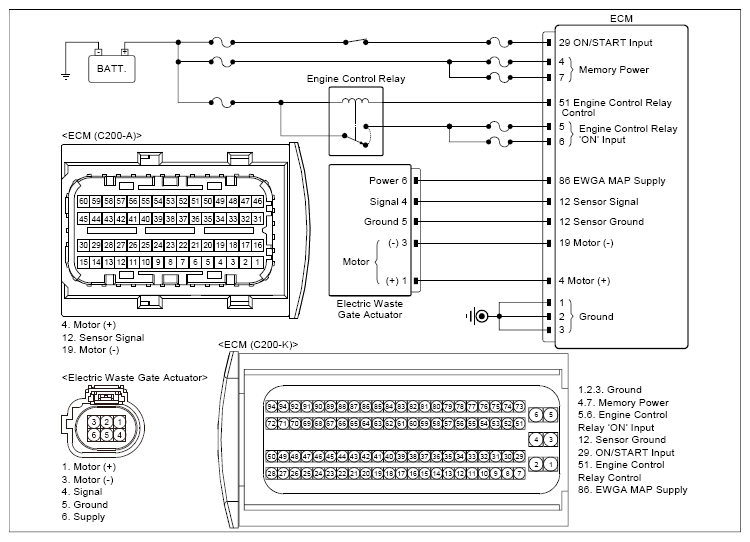

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| connector | Terminal | connector | Terminal | ||
|
EWGA connector | 1 (motor +) | Chassis ground | - | Approx. 1.7V |
| EWGA connector | 3 (motor -) | Chassis ground | - | Approx. 0V | |
| EWGA connector | 6 (sensor power) | Chassis ground | - | Approx. 4.9V | |
| EWGA connector | 4 (signal) | Chassis ground | - | Approx. 0V | |
|
EWGA connector | 4 (signal) | Chassis ground | - | ∞ (infinity)Ω |
| EWGA connector | 5 (ground) | Chassis ground | - | Approx. below 1Ω | |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then, go to "Verification of Repair " procedure.
