Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

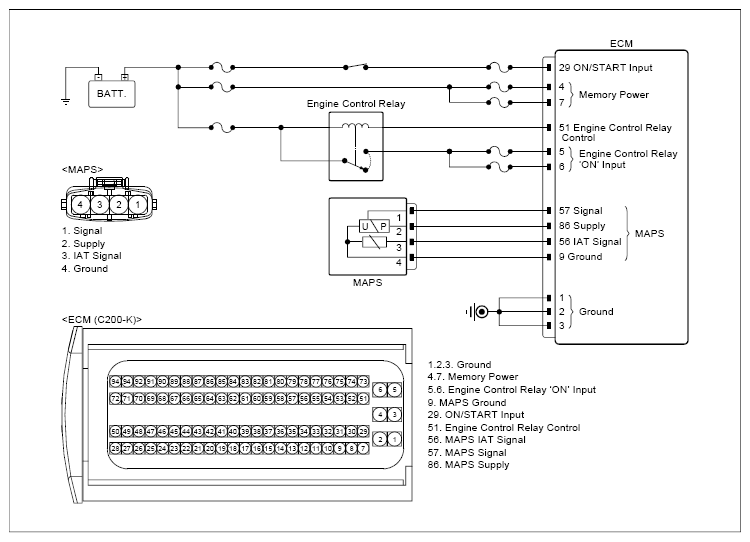

| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| connector | Terminal | connector | Terminal | ||
|
MAPS connector | 2 (power) | Chassis ground | - | Approx. 4.9V |
| MAPS connector | 1 (signal) | Chassis ground | - | Approx. 5.5V | |
|
MAPS connector | 1 (signal) | Chassis ground | - | ∞ (infinity)Ω |
| MAPS connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω | |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then, go to "Verification of Repair " procedure.
