Component Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

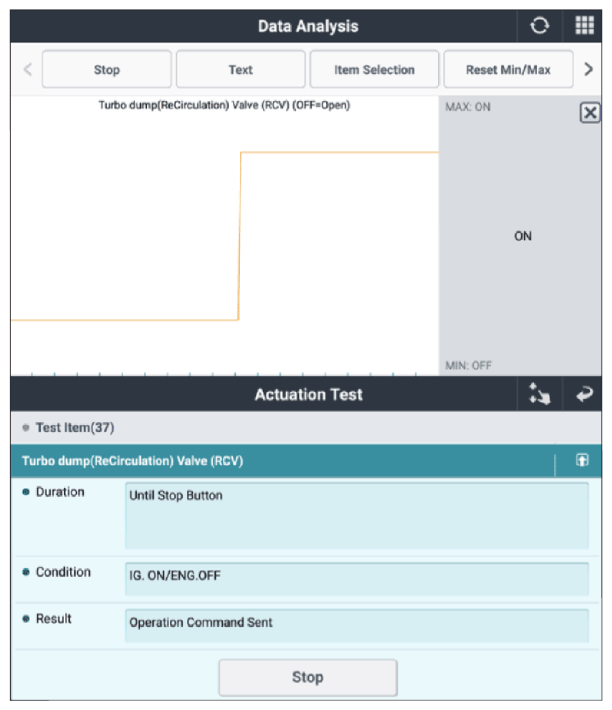

Fig.1 |
Good
- Go to "Verification of Repair " procedure.
No Good
- Go to "Inspect RCV Control Solenoid Valve" procedure.
| Inspect RCV Control Solenoid Valve | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| connector | Terminal | connector | Terminal | ||
|
RCV control solenoid valve (component side) | 1 (power) | RCV control solenoid valve (component side) | 2 (control) | Approx. 28.3 to 31.1Ω (20°C (68°F)) |
Good
- Go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the RCV control solenoid valve and go to "Verification of Repair " procedure.
