Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

G13285172

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the battery (-) cable and wait at least for one minute. Disconnect P-SIS connector and SRSCM main connector.	P-SIS connector	1 (high)	SRSCM connector	43 (high)	Approx. below 1Ω
	P-SIS connector	2 (low)	SRSCM connector	44 (low)	Approx. below 1Ω
	P-SIS connector	1 (high)	Chassis ground	-	∞ (infinity)Ω
	P-SIS connector	2 (low)	Chassis ground	-	∞ (infinity)Ω

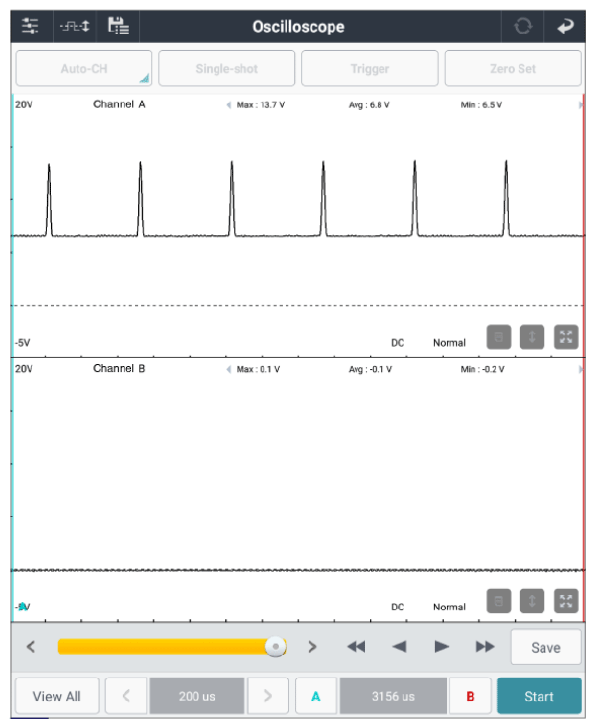

Connect the SRSCM main connector. Connect the battery (-) terminal cable to the battery. Ignition "ON".	P-SIS connector	1 (high)	Chassis ground	-	Fig.1
	P-SIS connector	2 (low)	Chassis ground	-	Fig.1

G13285173

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Component Inspection " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM main harness and then go to "Verification of Repair " procedure.
