Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

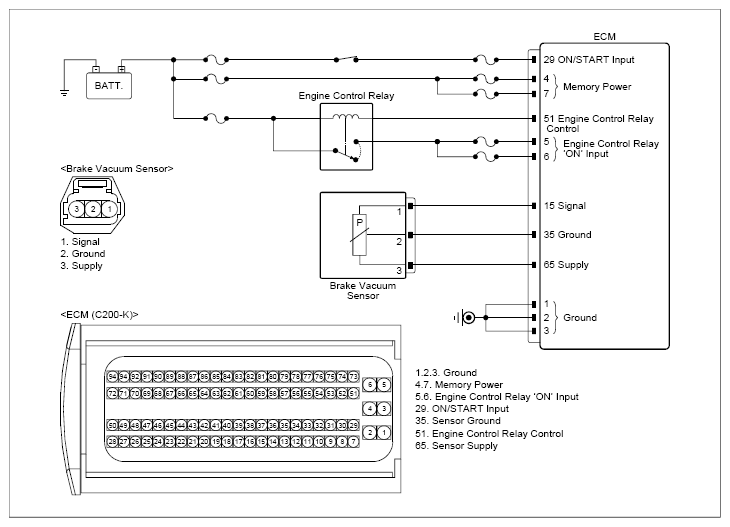

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| connector | Terminal | connector | Terminal | ||
|
BVS connector | 3 (power) | Chassis ground | - | Approx. 5V |
| BVS connector | 1 (signal) | Chassis ground | - | Approx. 5.6V | |
|
BVS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the BVS and go to "Verification of Repair " procedure.
