Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

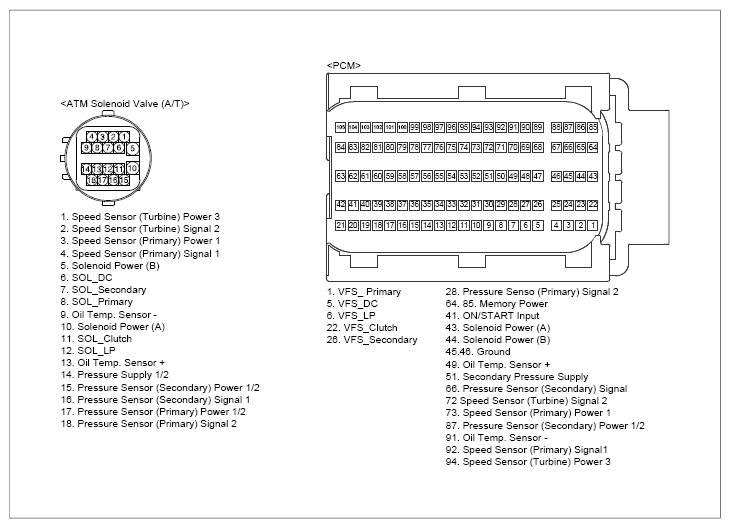

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Secondary pulley speed sensor connector | 1 (power) | Chassis ground | - | Approx. 11V |
| Secondary pulley speed sensor connector | 2 (signal) | Chassis ground | - | Approx. 0V | |
|
Secondary pulley speed sensor connector | 1 (power) | Chassis ground | - | ∞ (infinity)Ω |
| Secondary pulley speed sensor connector | 2 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- If problem still occurs, go to "Component Inspection " procedure.
No Good
- Repair open or short in circuit and then go to "Verification of Repair " procedure.
