Vehicle S/W Management
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Ignition switch "OFF".
- Connect KDS to Data Link Connector (DLC).
- Select the "Vehicle S/W Management" about related DTC with KDS.
- Perform
"Oil-pressure Characteristics Back UP & Input (TCU Replacement)" and go to "Verification of Repair " procedure.
|

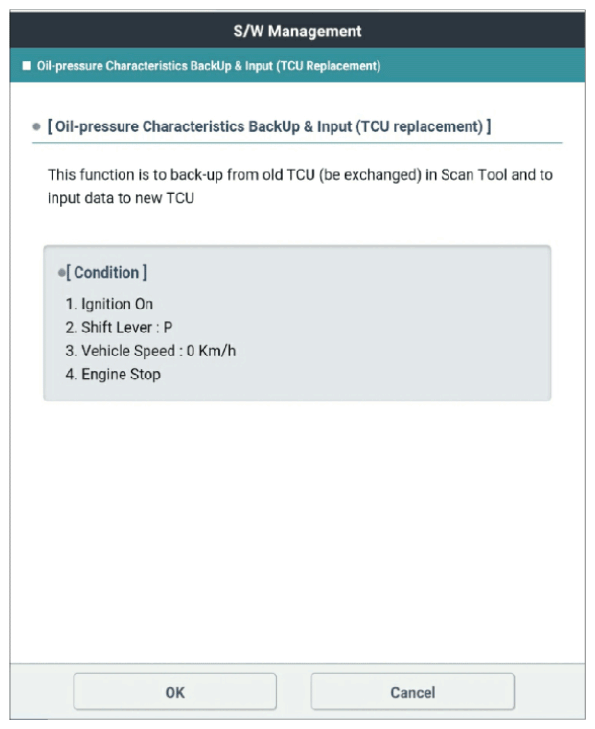

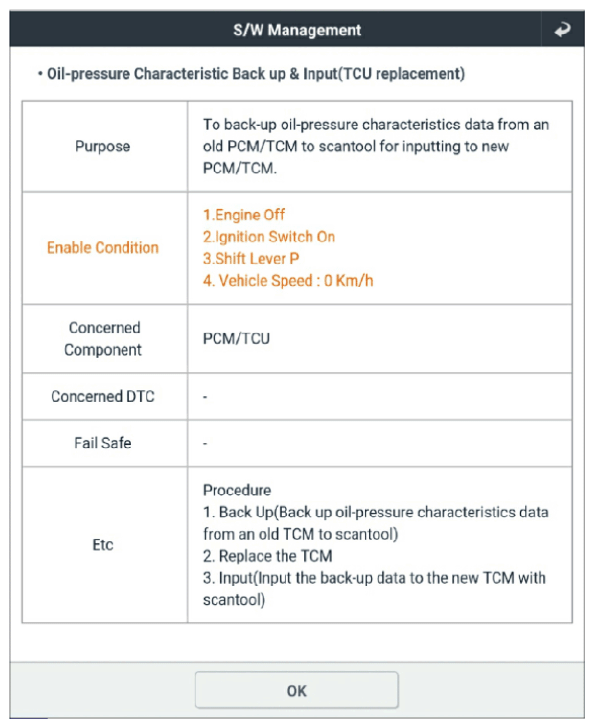

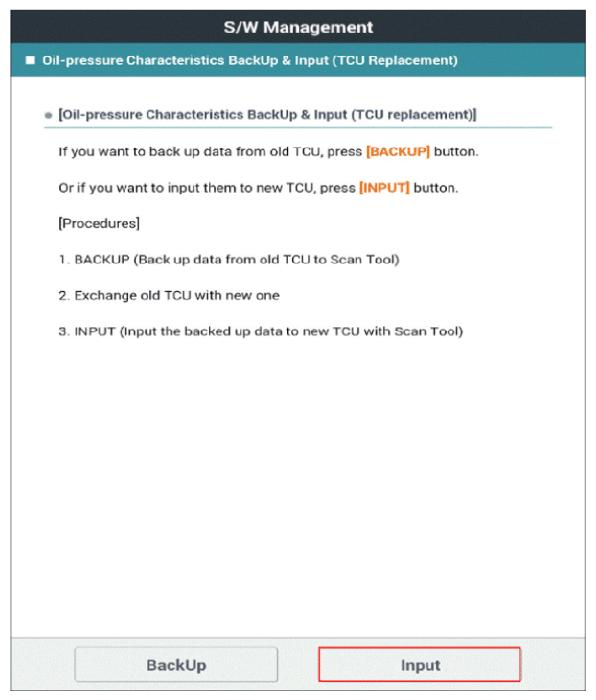

Fig.1 to 9 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
