Main Harness Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Place removed passenger airbag active vent facing upward for unexpected airbag deployment.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the battery (-) cable and wait at least for one minute. Disconnect passenger airbag active vent connector and SRSCM main connector.	Passenger airbag active vent connector	1 (high)	SRSCM connector	8 (high)	Approx. below 1Ω
	Passenger airbag active vent connector	2 (low)	SRSCM connector	7 (low)	Approx. below 1Ω
	Passenger airbag active vent connector	1 (high)	Chassis ground	-	∞ (infinity)Ω
	Passenger airbag active vent connector	2 (low)	Chassis ground	-	∞ (infinity)Ω

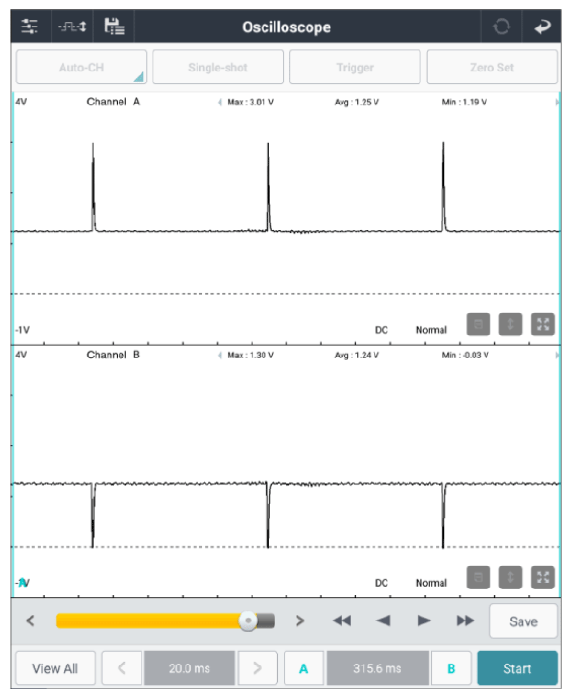

Connect the SRSCM main connector. Connect the battery (-) terminal cable to the battery. Ignition "ON".	Passenger airbag active vent connector	1 (high)	Chassis ground	-	Fig.1
	Passenger airbag active vent connector	2 (low)	Chassis ground	-	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM and then go to "Verification of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM main harness and then go to "Verification of Repair " procedure.
