Monitor KDS Data

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. No occupant on the passenger seat.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor parameters in "Current Data" with KDS.
 Fig.1 to 2
  1. Ignition "ON".
  2. Occupant on the passenger seat.

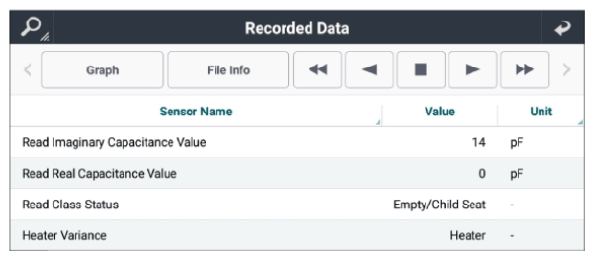

G13289270Courtesy of KIA MOTORS AMERICA, INC.
G13289271Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
