Body Sensor Reset

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

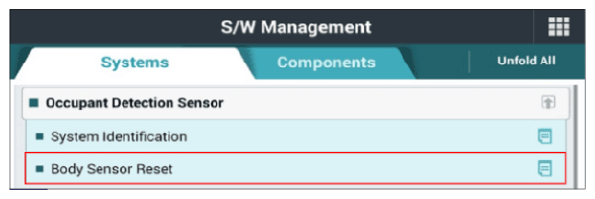

G13289259Courtesy of KIA MOTORS AMERICA, INC.
G13289260Courtesy of KIA MOTORS AMERICA, INC.

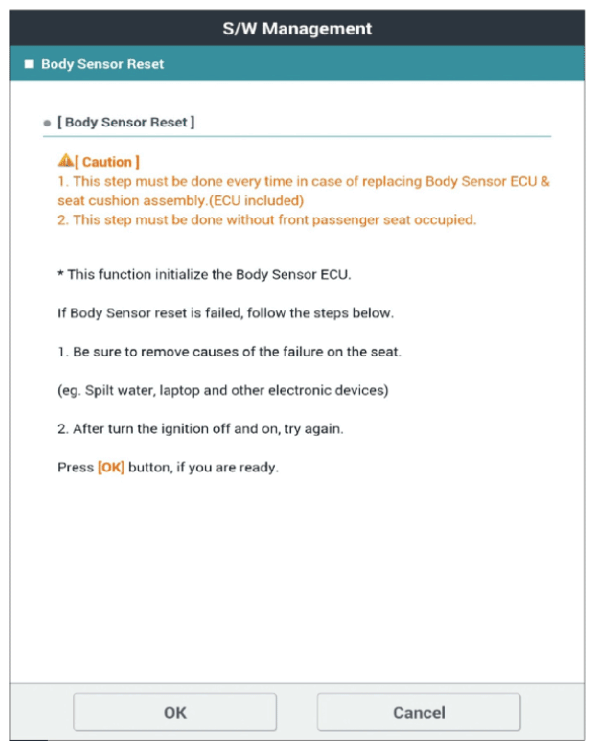

G13289261Courtesy of KIA MOTORS AMERICA, INC.
G13289262Courtesy of KIA MOTORS AMERICA, INC.

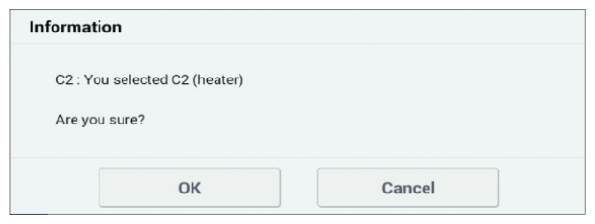

G13289263Courtesy of KIA MOTORS AMERICA, INC.

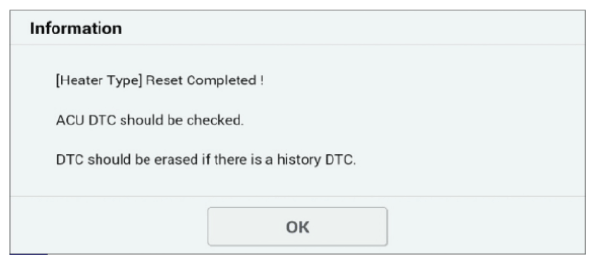

G13289264Courtesy of KIA MOTORS AMERICA, INC.
