Component Inspection

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Actuation Test" of concerned component with KDS.
 Fig. 1 to 2
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 3 to 7
G13284680Courtesy of KIA MOTORS AMERICA, INC.
G13284681Courtesy of KIA MOTORS AMERICA, INC.

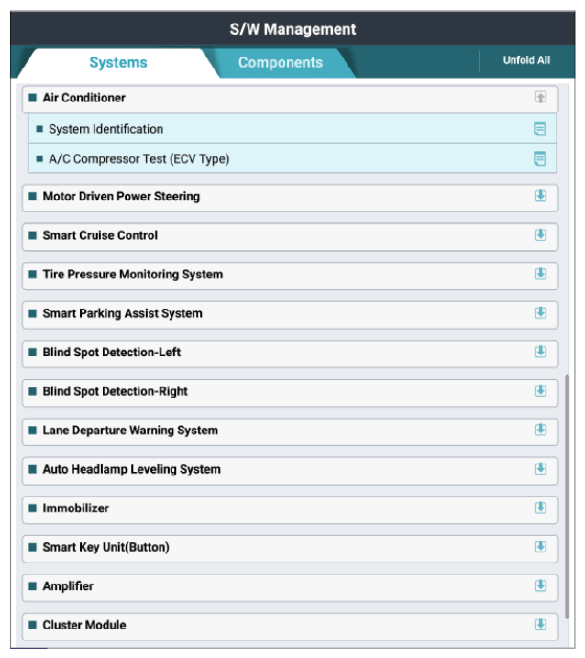

G13284682Courtesy of KIA MOTORS AMERICA, INC.
G13284683Courtesy of KIA MOTORS AMERICA, INC.
G13284684Courtesy of KIA MOTORS AMERICA, INC.
G13284685Courtesy of KIA MOTORS AMERICA, INC.
G13284686Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  2. Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

  1. Carefully re-do this troubleshooting guide steps.
  2. If no problems were found with the circuits or connectors, replace the ECV and go to "Verification of Repair " procedure.
