Monitor KDS Data

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor parameters in engine system "Current Data" with KDS.

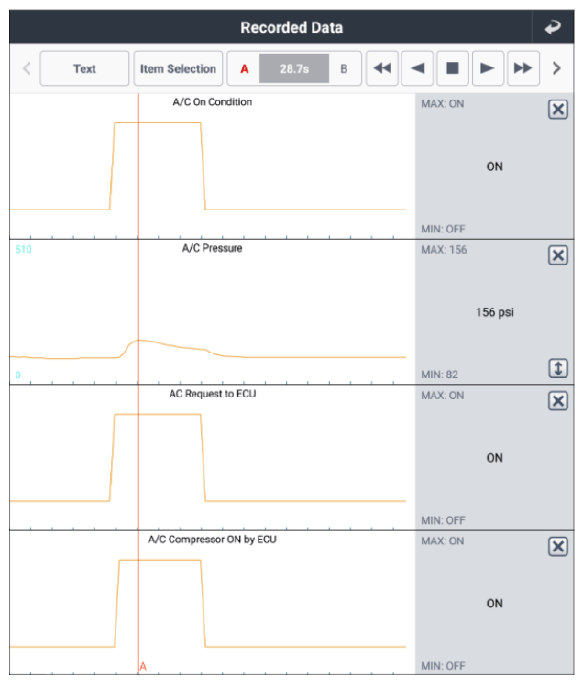

 Fig. 1
G13284653Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Go to "Wiring Inspection " procedure.

No Good

  1. Check for APT sensor related DTC and perform applicable troubleshooting and then re-do this troubleshooting guide steps.
  2. If APT sensor related DTCs are corrected and the problem still occurs, go to "Wiring Inspection " procedure.
