Home >> Kia >> 2020 >> Soul GT Line Turbo >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System Diagnosis - 1.6L (1 Of 6) >> DTC P0017-00: Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B(Exhaust)) >> Component Location

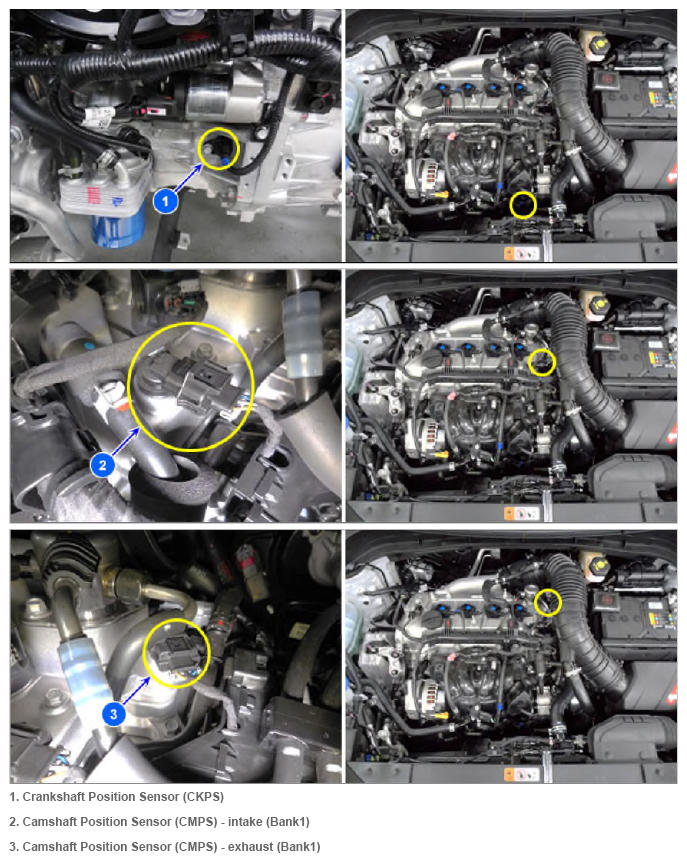

Component Location

G13286342Courtesy of KIA MOTORS AMERICA, INC.
