Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Loosen the alternator mounting bolts (A).
  3. Loosen the drive belt tension by loosening the adjusting bolt (B).
    G13280492Courtesy of KIA MOTORS AMERICA, INC.

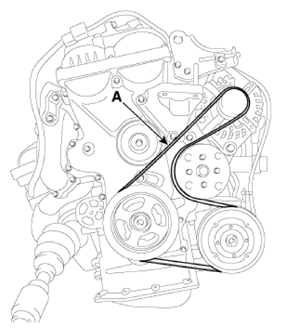

  4. Remove the drive belt (A).
    G13280493Courtesy of KIA MOTORS AMERICA, INC.
