Repair Procedures: Installation

Install the drive belt (A).

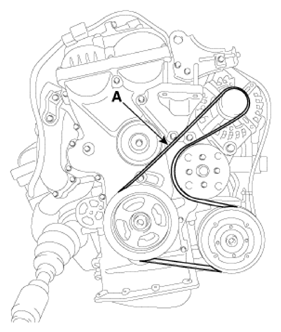

Fig 1: Engine Drive Belt Routing Diagram
Courtesy of KIA MOTORS AMERICA, INC.

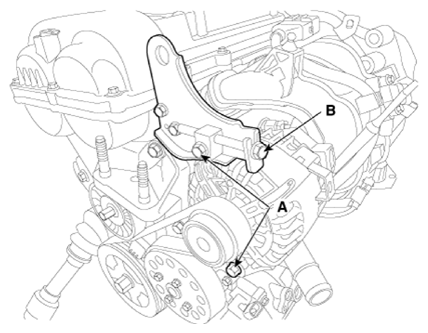

Adjust tension by tightening the alternator tension adjust bolt (B) and then install the mounting bolts (A).
Tightening torque

12mm (0.47in) bolt:

26.5 - 37.3 N.m (2.7 - 3.8 kgf.m, 19.5 - 27.5 lb.ft) [10T Type]

24.3 - 26.9 N.m (2.48 - 2.74 kgf.m, 17.9 - 19.8 lb.ft) [8T Type]

14mm (0.55in) bolt:

29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 Ib.ft)

Courtesy of KIA MOTORS AMERICA, INC.
