Components And Components Location: Components

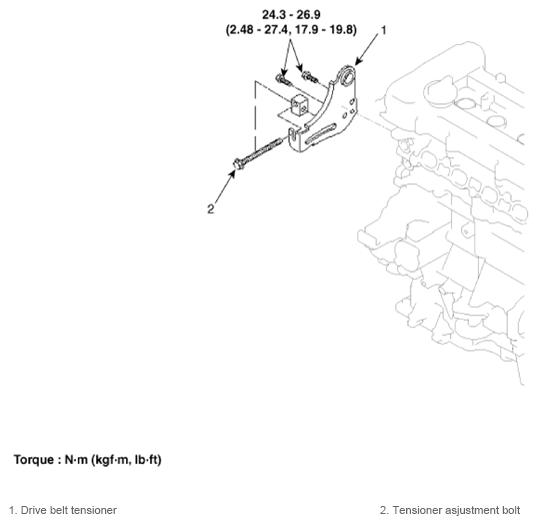

Fig 1: Drive Belt Tensioner Components Location With Torque Specification

G13280505

Courtesy of KIA MOTORS AMERICA, INC.
