Removal And Installation
- Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")
- Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
- Remove the RH side front wheel.
(Refer to Suspension System - "WHEEL ")

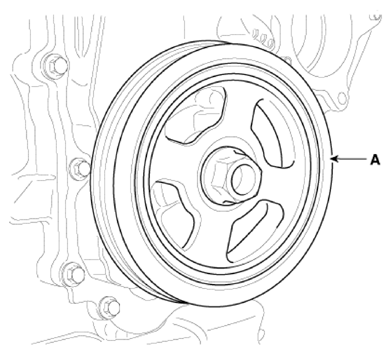

- Remove the crankshaft damper pulley (A).
Tightening torque:
46.1 - 52.0 N.m (4.7 - 5.3 kgf.m, 34.0 - 38.3 lb.ft) + 38° - 42°
Information
Fix the ring gears using the SST (09231-3N100, 09231-2B100) after remove the starter. Then Remove the crankshaft damper pulley bolt.
