Water Pipe
- Remove the water temperature control assembly.
- Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")

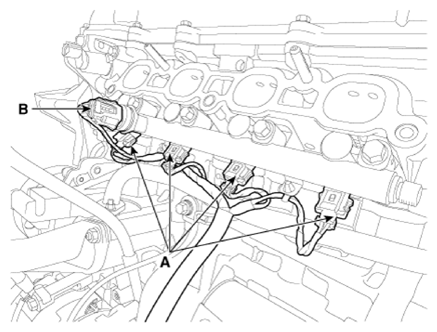

- Disconnect the injector connectors (A).
- Disconnect the rail pressure sensor (RPS) connector (B).
- Remove the water pipe (A).
Tightening torque
M6 bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
M8 bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
- Install in the reverse order of removal.
