Repair Procedures: Removal

  1. Drain the engine coolant.

    (Refer to Cooling System - "COOLANT ")

  2. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

  3. Remove the water pump pulley (A).
    G13280303Courtesy of KIA MOTORS AMERICA, INC.

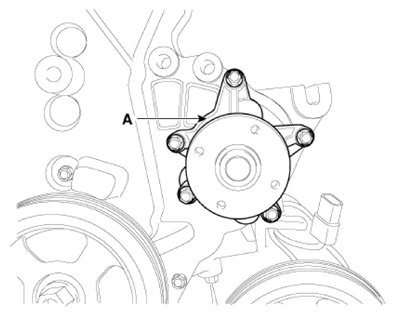

  4. Remove the water pump (A).
    G13280304Courtesy of KIA MOTORS AMERICA, INC.
