Components And Components Location: Components

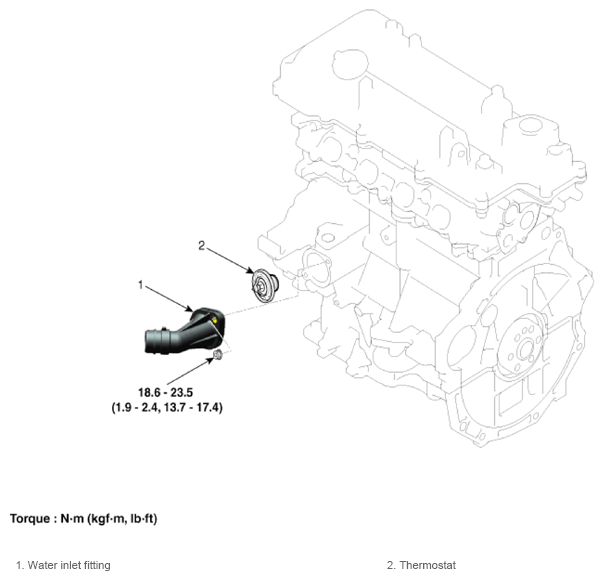

Fig 1: Thermostat Components Location With Torque Specification

G13280307

Courtesy of KIA MOTORS AMERICA, INC.
