Removal And Installation

  1. Disconnect the reservoir hose (A).
  2. Remove the reservoir tank (B).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

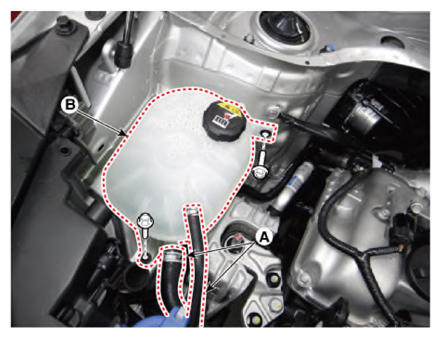

    G13280264Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
