Removal And Installation

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the cooling fan.
(Refer to Cooling System - "COOLING FAN ")

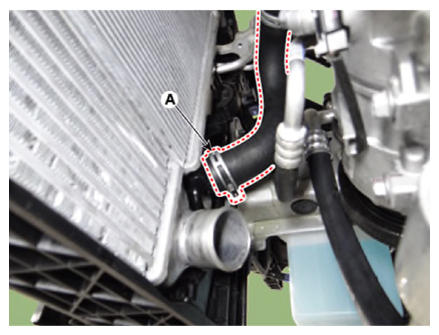

Remove the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
Remove the head lamps.
(Refer to Body Electrical System - "HEAD LAMPS ")

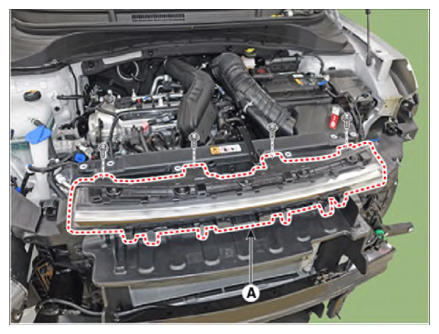

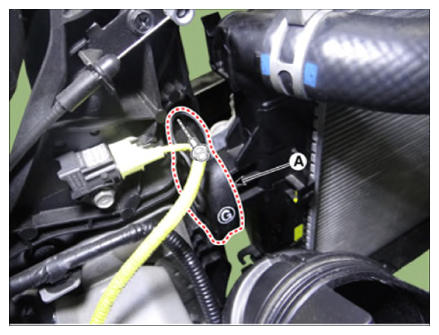

Remove the front bumper upper mounting bracket (A) after loosening the mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

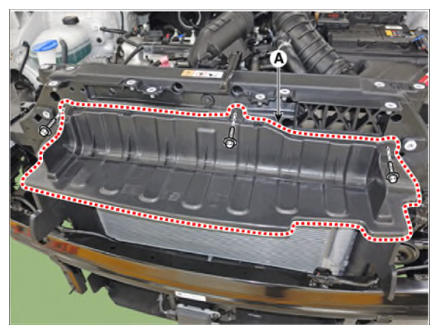

Remove the air upper guard assembly (A) after loosening the mounting bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the side air guard (A) after loosening the mounting bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

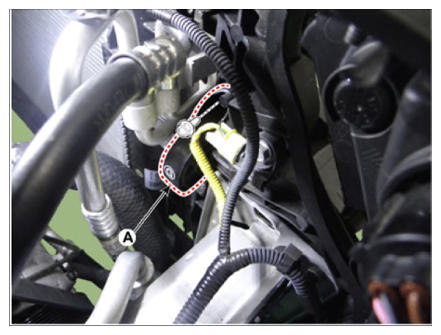

Remove the radiator upper mounting bracket (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

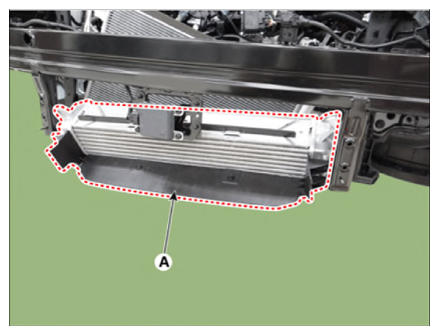

Loosen the intercooler (A) mounting bolts.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

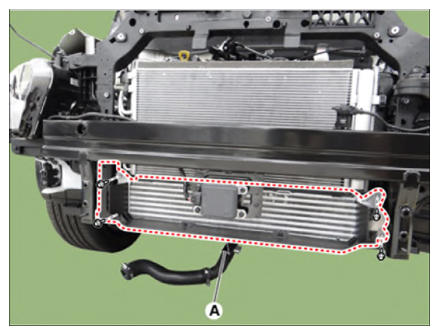

Separate the intercooler (A) from the radiator.

Courtesy of KIA MOTORS AMERICA, INC.

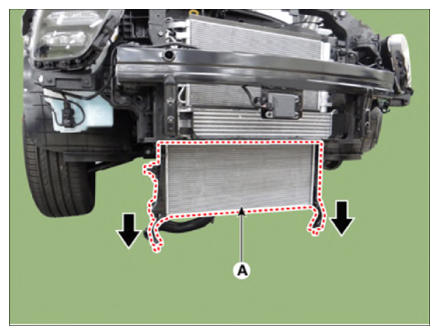

Separate the condenser (A) from the radiator.

Courtesy of KIA MOTORS AMERICA, INC.

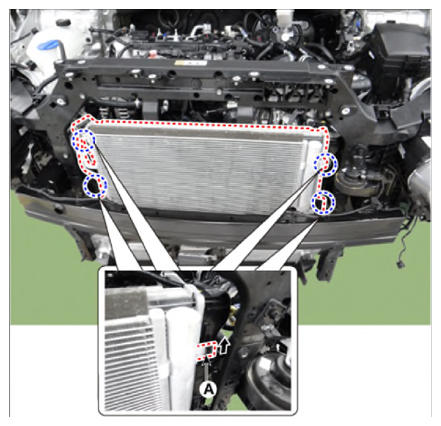

Remove the radiator (A) from the condenser.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Fill the radiator with coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
