Repair Procedures: Disassembly

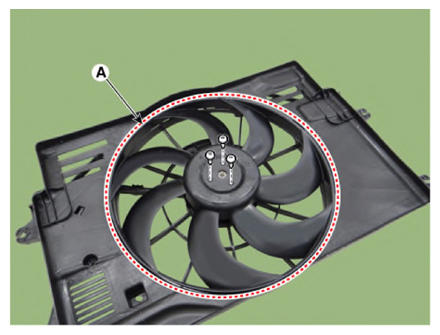

Remove the cooling fan (A) from the cooling fan assembly.
Tightening torque:

2.8 - 3.3 N.m (0.28 - 0.33 kgf.m, 2.06 - 2.43 lb.ft, 24.3 - 28.6 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the cooling fan motor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fan motor (A) from the cooling fan shroud.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 35.4 - 53.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
