Components And Components Location: Components

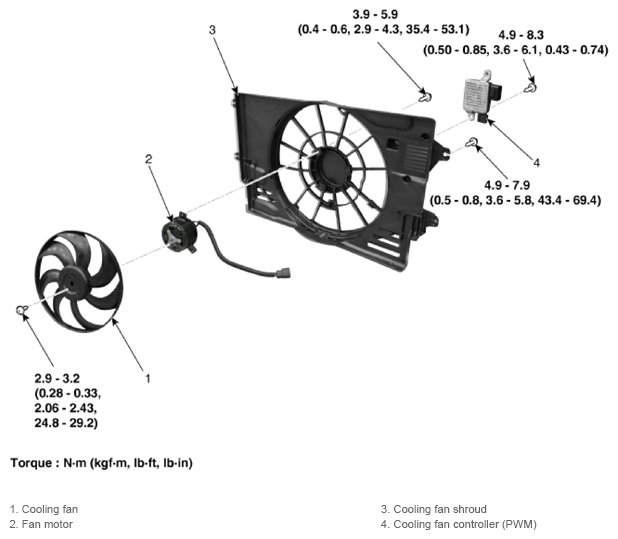

Fig 1: Cooling Fan Components Location With Torque Specification

G13280265

Courtesy of KIA MOTORS AMERICA, INC.
