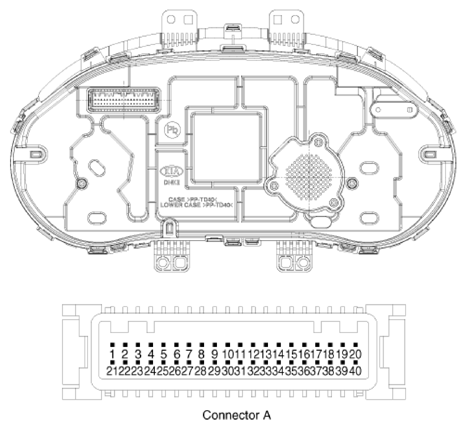

| 1 |
Signal 3 ground |
| 2 |
Illumination (-) |
| 3 |
Rheostat switch (Down) input |
| 4 |
Rheostat switch (Up) input |
| 5 |
Detent |
| 6 |
AT ('P' Position) |
| 7 |
AT ('R' Position) |
| 8 |
AT ('N' Position) |
| 9 |
AT ('D' Position) |
| 10 |
AT ('S' Position) |
| 11 |
Immobilizer input |
| 12 |
Vehicle speed output |
| 13 |
Alternator input (Gasoline only) |
| 14 |
Fuel sender (+) input |
| 15 |
Vehicle speed input |
| 16 |
Fuel sender (-) input |
| 17 |
Water separator input (Diesel only) |
| 18 |
Air bag (+) input |
| 19 |
Oil press switch input (Gasoline only) |
| 20 |
Tail lamp input |
| 21 |
Trip switch (-) input |
| 22 |
Trip switch 1 (+) input |
| 23 |
Trip switch 2 (+) input |
| 24 |
MT ('N' position) input |
| 25 |
Drive mode switch input |
| 26 |
- |
| 27 |
- |
| 28 |
Washer level low signal |
| 29 |
MM-CAN (LOW) |
| 30 |
MM-CAN (High) |
| 31 |
Engine run state output |
| 32 |
C-CAN (High) |
| 33 |
C-CAN (Low) |
| 34 |
Outside temperature input |
| 35 |
FFV 5V output (+) |
| 36 |
Steering heater indicator input |
| 37 |
Signal 1 ground |
| 38 |
- |
| 39 |
IGN1 |
| 40 |
Battery (+) |
