Repair Procedures: Removal

NOTE: When praying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

  3. Remove the instrument cluster (A) after loosening the mounting screws.

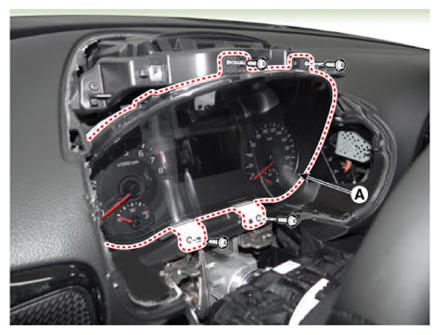

    G13282492Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the cluster connector (A).

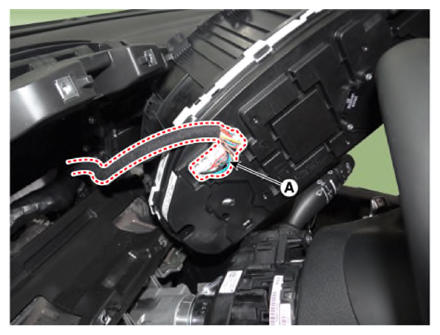

G13282493Courtesy of KIA MOTORS AMERICA, INC.
