Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Open the glove box (A) in the direction of the arrow.

   Courtesy of KIA MOTORS AMERICA, INC.

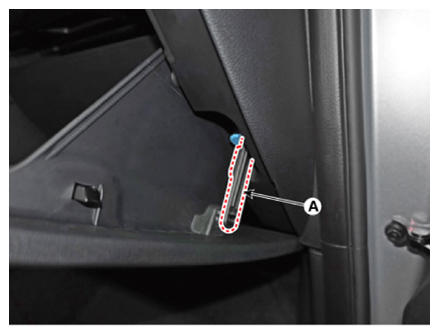

2. Remove the air damper (A) from the glove box.

   Courtesy of KIA MOTORS AMERICA, INC.

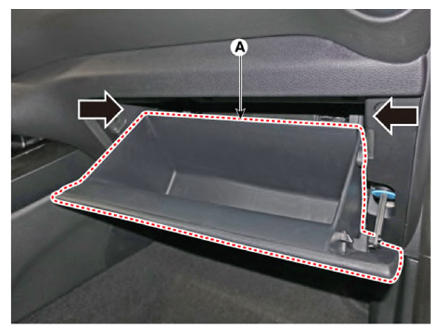

3. Press both sides of the stoppers down the glove box (A).

   Courtesy of KIA MOTORS AMERICA, INC.

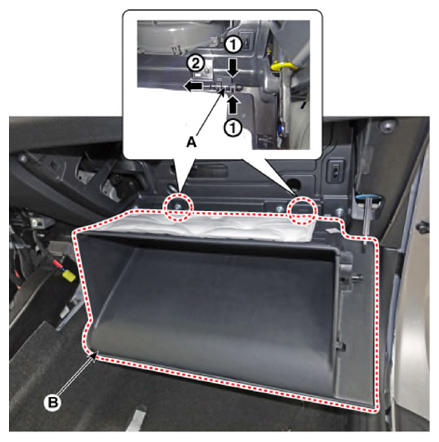

4. Remove the lock pins (A) and then remove the glove box (B).

   Courtesy of KIA MOTORS AMERICA, INC.

5. To install, reverse removal procedure.

   Information

   Replace any damaged clips (or pin - type retainers).
