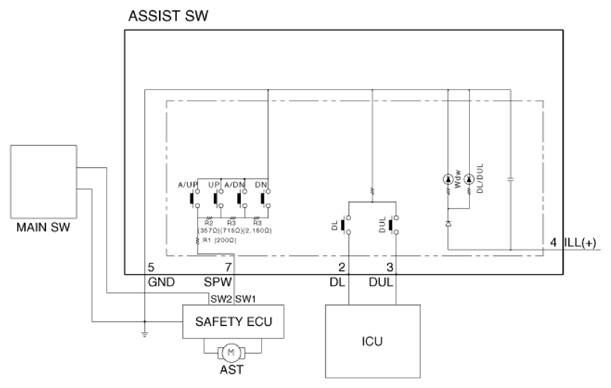

Safety Assist Power Window Switch (Power Door Lock)

G13282755

Courtesy of KIA MOTORS AMERICA, INC.
