Home >> Kia >> 2020 >> Soul GT Line Turbo >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Power Window Sub Switch >> Non-Safety Assist Power Window Switch (Power Door Lock)

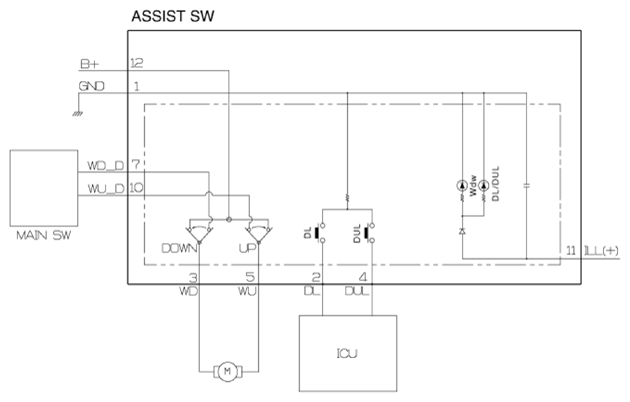

Non-Safety Assist Power Window Switch (Power Door Lock)

G13282756

Courtesy of KIA MOTORS AMERICA, INC.
