Air Ventilation Seat Blower

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

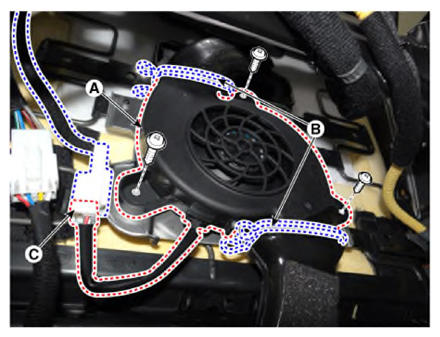

  3. Remove the blower (A) by loosening the screws and clips (B) after disconnecting the connector (C).
    G13282812Courtesy of KIA MOTORS AMERICA, INC.
