Repair Procedures: Removal

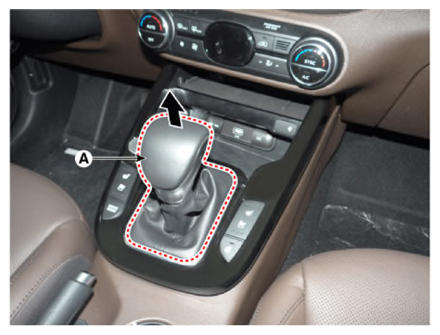

  1. After separating the boots from the console upper cover, remove the knob (A) by pulling it in the direction of arrow.
    G13282803Courtesy of KIA MOTORS AMERICA, INC.

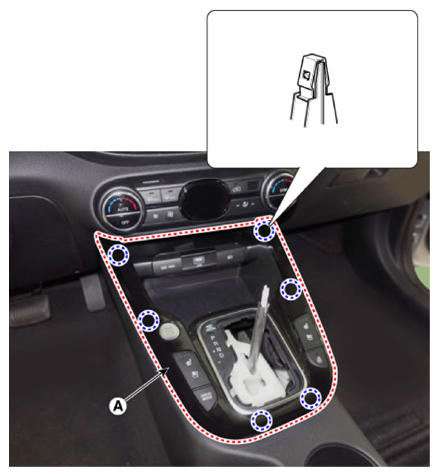

  2. Remove the console upper cover (A).
    G13282804Courtesy of KIA MOTORS AMERICA, INC.

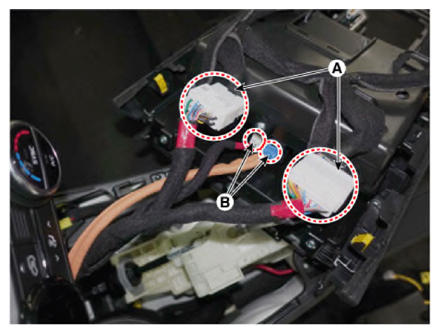

  3. Disconnect the extension connector (A) and multimedia jack connectors (B).
    G13282805Courtesy of KIA MOTORS AMERICA, INC.

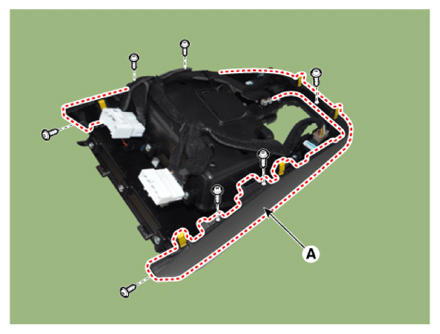

  4. Remove the console upper cover lower garnish (A) by loosening the screws.
    G13282806Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the seat heater switch connector (A).

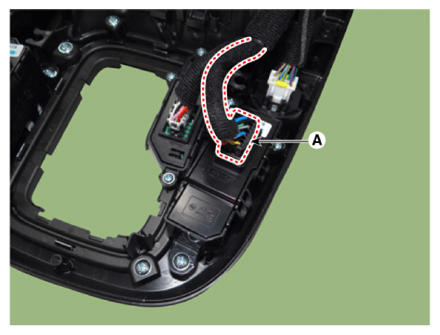

    [Driver seat]

    G13282807Courtesy of KIA MOTORS AMERICA, INC.

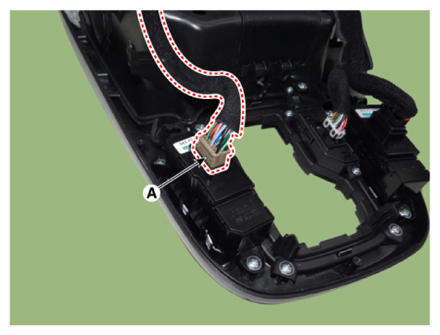

    [Passenger seat]

    G13282808Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the seat heater switch (A) by loosening the screws.

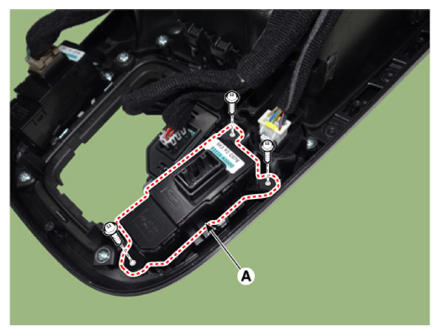

    [Driver seat]

    G13282809Courtesy of KIA MOTORS AMERICA, INC.

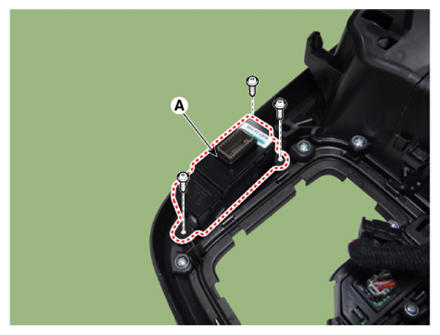

    [Passenger seat]

    G13282810Courtesy of KIA MOTORS AMERICA, INC.
