Repair Procedures: Inspection: Notes

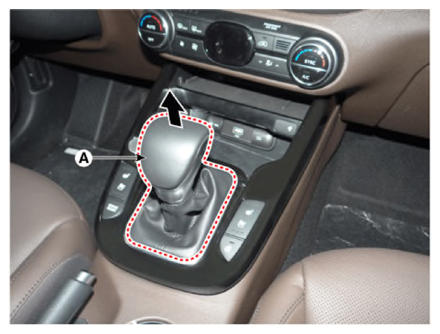

After separating the boots from the console upper cover, remove the knob (A) by pulling it in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

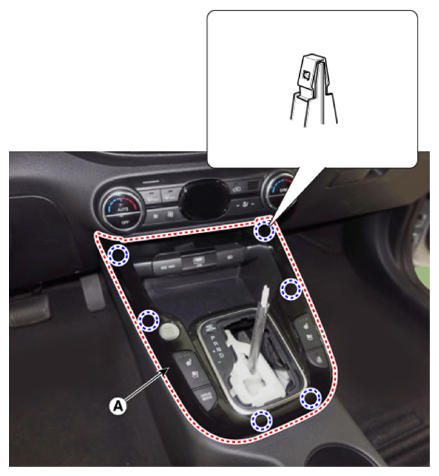

Remove the console upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

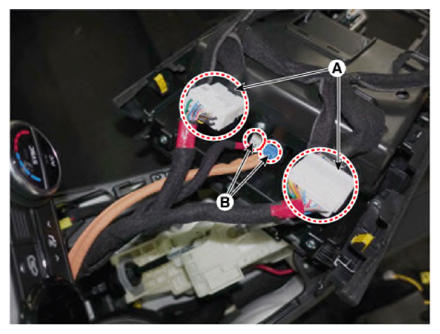

Disconnect the extension connector (A) and multimedia jack connectors (B).

Courtesy of KIA MOTORS AMERICA, INC.

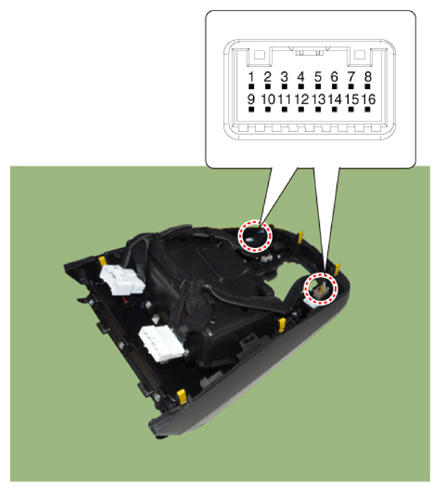

Push and hold the switch, check for continuity between signal terminal and ground terminal.

Courtesy of KIA MOTORS AMERICA, INC.
