Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the motor connector after removing the seat.
    1. Front height motor
      G13282821Courtesy of KIA MOTORS AMERICA, INC.

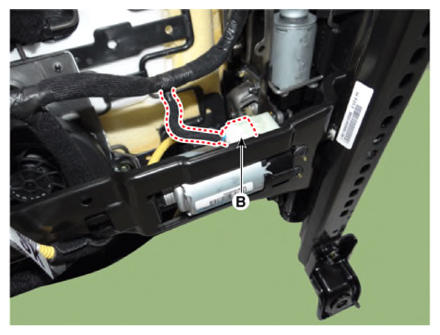

    2. Slide motor
      G13282822Courtesy of KIA MOTORS AMERICA, INC.

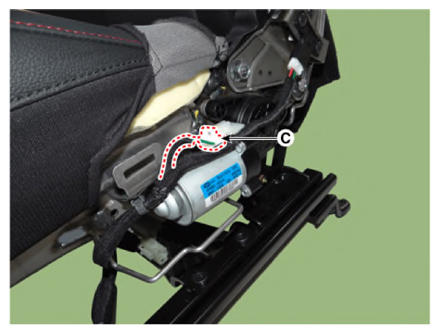

    3. Rear height motor
      G13282823Courtesy of KIA MOTORS AMERICA, INC.

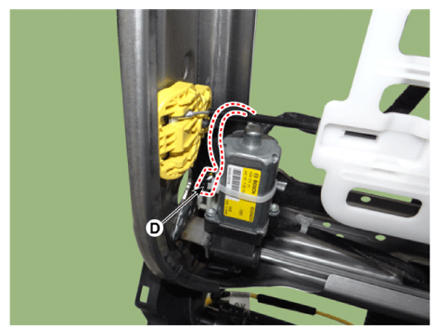

    4. Reclining motor
      G13282824Courtesy of KIA MOTORS AMERICA, INC.
    5. Lumber support motor
      G13282825Courtesy of KIA MOTORS AMERICA, INC.

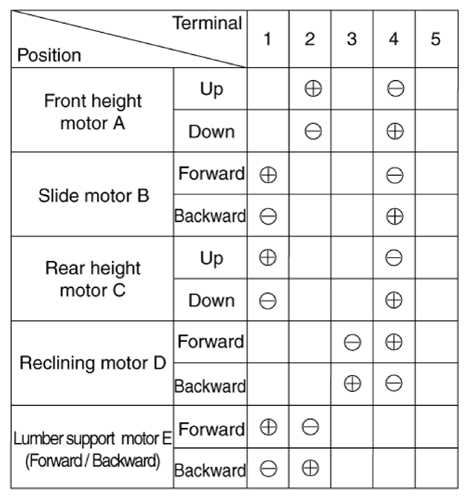

  3. When the battery power is supplied to the motor connector, check the motor for smooth operation.
    G13282826Courtesy of KIA MOTORS AMERICA, INC.
    G13282827Courtesy of KIA MOTORS AMERICA, INC.
