Home >> Kia >> 2020 >> Soul GT Line Turbo >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Electrical >> Heated Seats Only >> Repair Procedures >> Inspection >> Rear Seat Heater

Rear Seat Heater

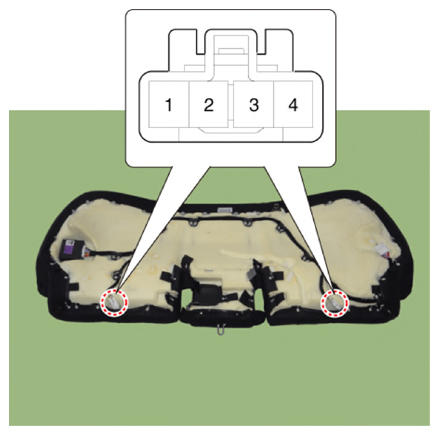

  1. Check for continuity and measure the resistance between terminals No 1 and No 4.

    Standard value:  3.74 Ω±10 %/22°C

    G13282789Courtesy of KIA MOTORS AMERICA, INC.
