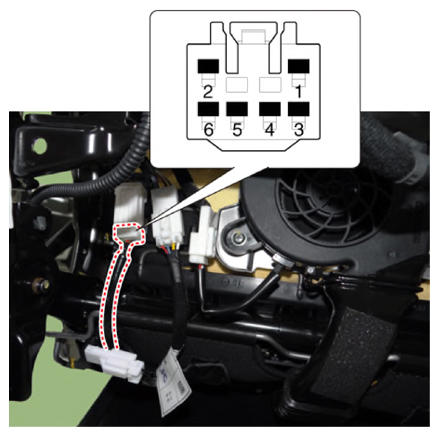

Driver/Passenger Seat Heater
- Check for continuity and measure the resistance between terminals.
Standard value
Driver/Passenger (cushion): 2.98Ω±10%/22°C
Driver/Passenger (back): 3.80Ω±10%/22°C
Driver/Passenger (cushion + back): 1.67Ω±10%/22°C
| Pin | Function | |
|---|---|---|
| Heater | Heater + Ventilation | |
| 1 | - | NTC (+) |
| 2 | - | - |
| 3 | Heater power | NTC (-) |
| 4 | NTC (+) | Cushion heater power |
| 5 | NTC (-) | Back heater power |
| 6 | Ground | Ground |
