Repair Procedures: Replacement: [LH]

NOTE:
  • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat back cover [LH].

    (Refer to Rear Seat - "REAR SEAT BACK COVER ")

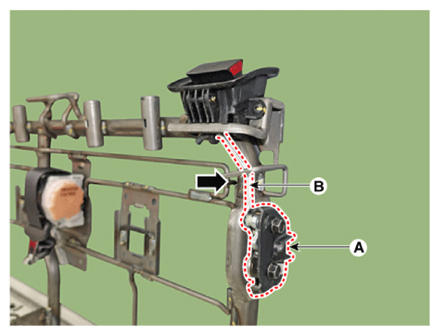

  2. After loosening the mounting bolts, remove the rear seat latch (A).
  3. Remove the rear seat latch rod (B) to direction of the arrow.

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 Kgf.m, 12.3 - 18.8 lb.ft)

    G13282273Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
