Repair Procedures: Replacement: [RH]

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat assembly [RH].
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

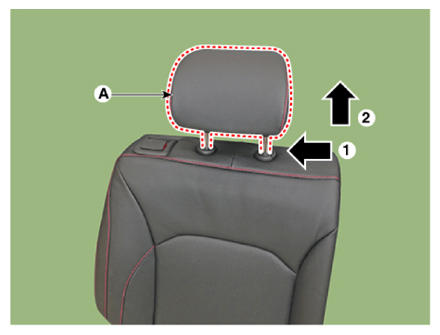

Push the lock pins, and remove the rear seat headrest (A).

Courtesy of KIA MOTORS AMERICA, INC.

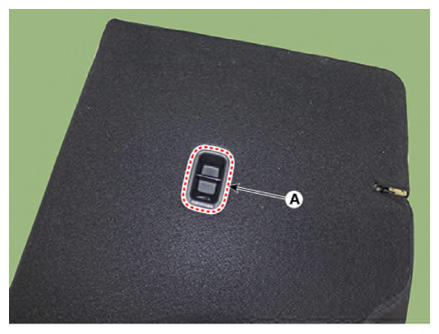

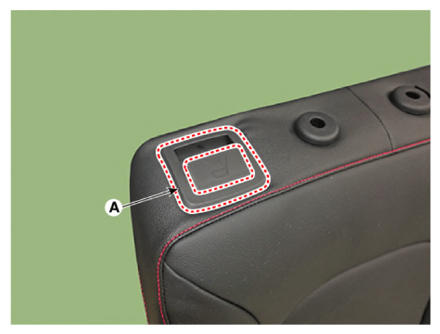

Using a screwdriver or remover, remove the rear seat folding bezel (A).

Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the child anchor cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

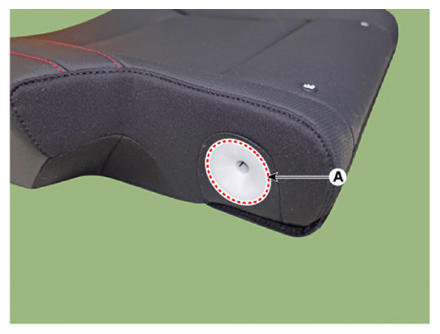

Using a screwdriver or remover, remove the cap (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the hog-ring clips (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the protector (A) located in the bottom side of the rear seat back.

Courtesy of KIA MOTORS AMERICA, INC.

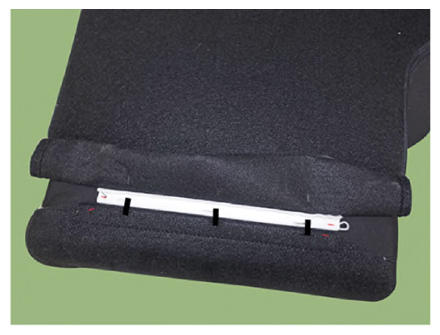

Open the seat back side zipper (A).

Courtesy of KIA MOTORS AMERICA, INC.

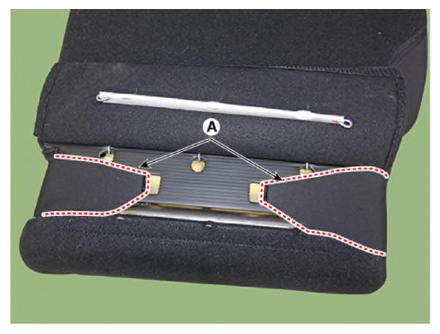

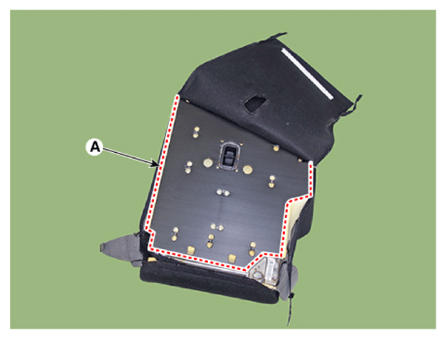

Remove the back board (A) after removing the hog-ring clips.

Courtesy of KIA MOTORS AMERICA, INC.

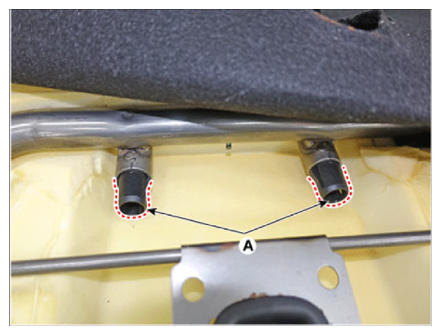

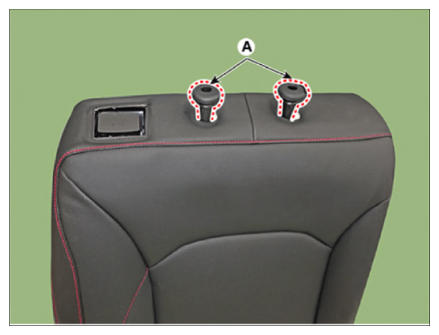

Pull out the rear seat headrest guides (A) while pinching both sides of the lower part of the guides, and remove them.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

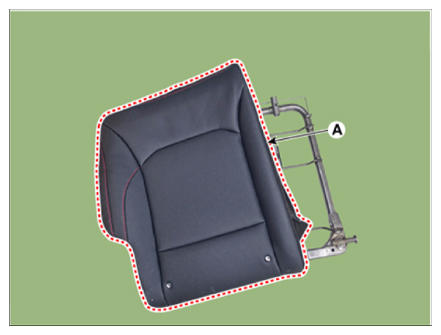

Remove the rear seat back cover assembly (A) from the rear seat back frame.

Courtesy of KIA MOTORS AMERICA, INC.

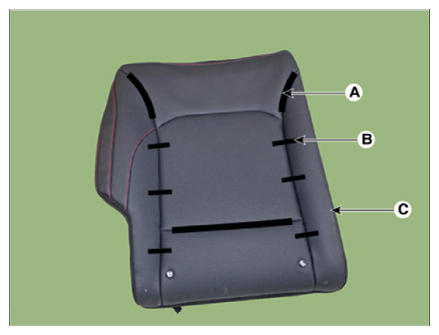

After removing the velcro tape (A) and hog - ring clips (B) inside the rear seat cushion cover, remove the seat cushion covering.

Courtesy of KIA MOTORS AMERICA, INC.

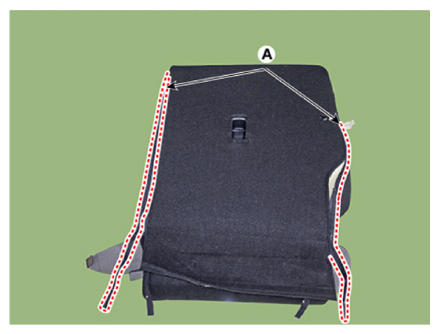

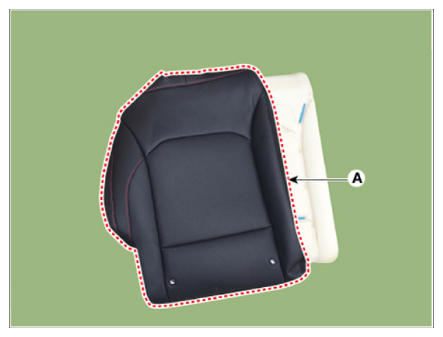

Remove the rear seat back cover (A) from the rear seat back pad.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure that the connectors are connected completely.
- Replace any damaged clips (or pin-type retainers).

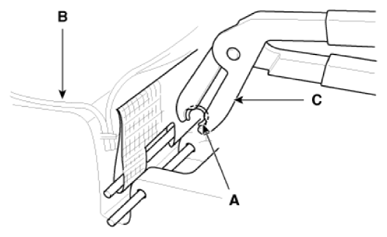

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

Courtesy of KIA MOTORS AMERICA, INC.
