Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat assembly
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Carefully remove the rear door body side weatherstrip.
Carefully remove the liftgate weatherstrip.
Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
Remove the rear transverse trim.
(Refer to Liftgate Trim - "REAR TRANSVERSE TRIM ")

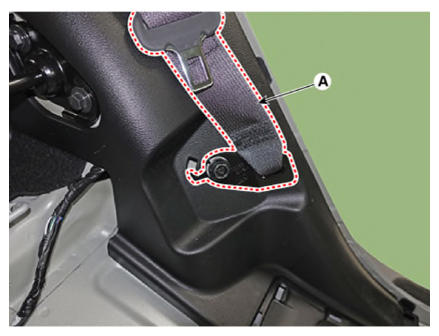

After loosening the mounting bolt, remove the rear seat belt lower anchor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

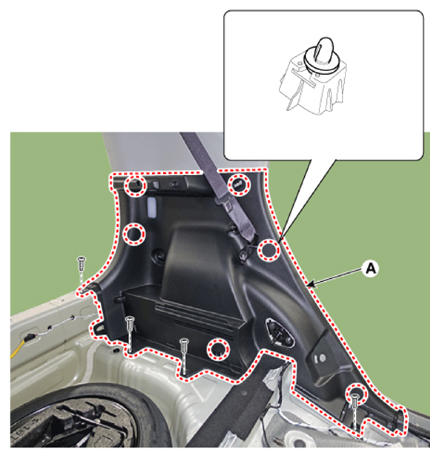

After loosening the mounting screws, remove the luggage side trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

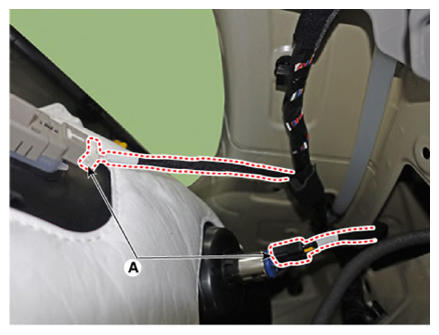

Press the lock pin and separate connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information

place any damaged clips (or pin-type retainers).
