Repair Procedures: Replacement
CAUTION:
Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Once the rear pillar trim is removed, be sure to replace the clips with new ones.
- Remove the luggage side trim.
(Refer to Liftgate Trim - "LUGGAGE SIDE TRIM ")

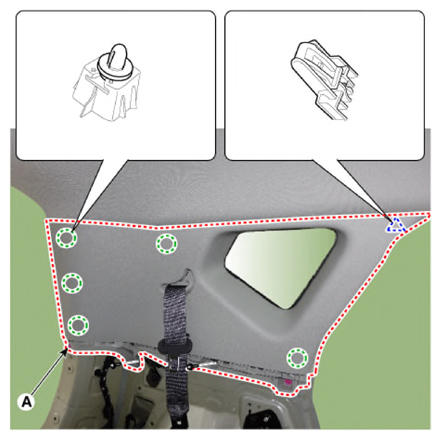

- After loosening the mounting bolts, remove the rear pillar trim (A).
Tightening torque:
7.8 - 10.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)
- To install, reverse removal procedure.
Information
Replace any damaged clips (or pin-type retainers).
