Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Using a screwdriver or remover and remove the front door step trim (A).

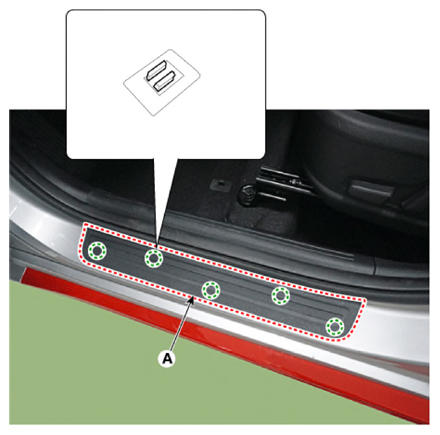

    [Front]

    G13282111Courtesy of KIA MOTORS AMERICA, INC.

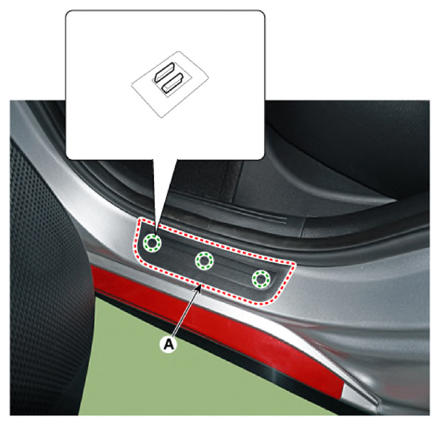

    [Rear]

    G13282112Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reverse removal procedure.

    Information

    place any damaged clips.
