Glass Adjustment

Information

Check the glass run channel for damage or deterioration, and replace them if necessary.

1. Remove the rear door trim.

   (Refer to Rear Door - "REAR DOOR TRIM ")

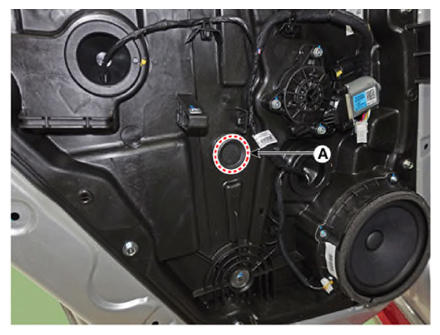

2. Remove the plug hole (A).

   Courtesy of KIA MOTORS AMERICA, INC.

3. After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Check the glass for normal operation.
