Repair Procedures: Replacement

Remove the rear door trim.
(Refer to Rear Door - "REAR DOOR TRIM ")

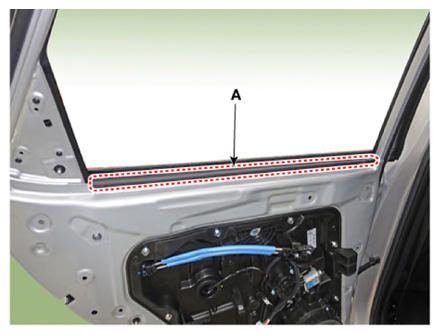

Remove the rear door belt inside weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.

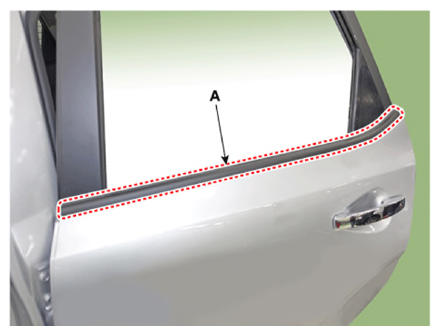

After loosening the mounting screws, remove the rear door belt outside weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, remove the rear door delta molding (A).

Courtesy of KIA MOTORS AMERICA, INC.

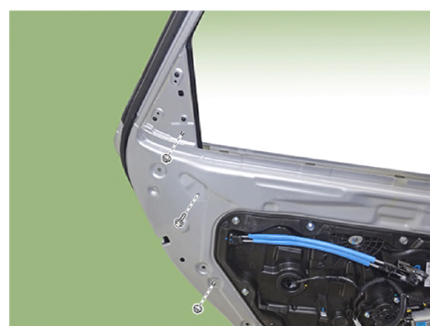

Unscrew the rear door channel mounting nuts and bolt loosely.
Tightening torque

Nut: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Bolt: 8.8 - 13.7 N.m (0.9 - 1.4kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

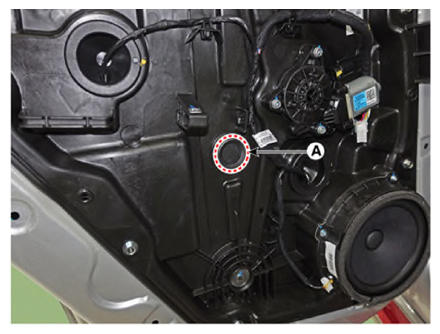

Remove the plug hole (A).

Courtesy of KIA MOTORS AMERICA, INC.
By operating the power window switch, pull down until the glass mounting bolt on plug hole is visible.
CAUTION: Be careful not to damage the glass surface.
Loosen the mounting bolts and then pull out the rear door window glass (A) by tilting it sideways.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure that the glass rolls up and down smoothly.
- Adjust glass position as needed.
- Make sure the door locks and opens properly.
- Replace any damaged clips (or pin-type retainers).
